Shandong KeyuanProducts

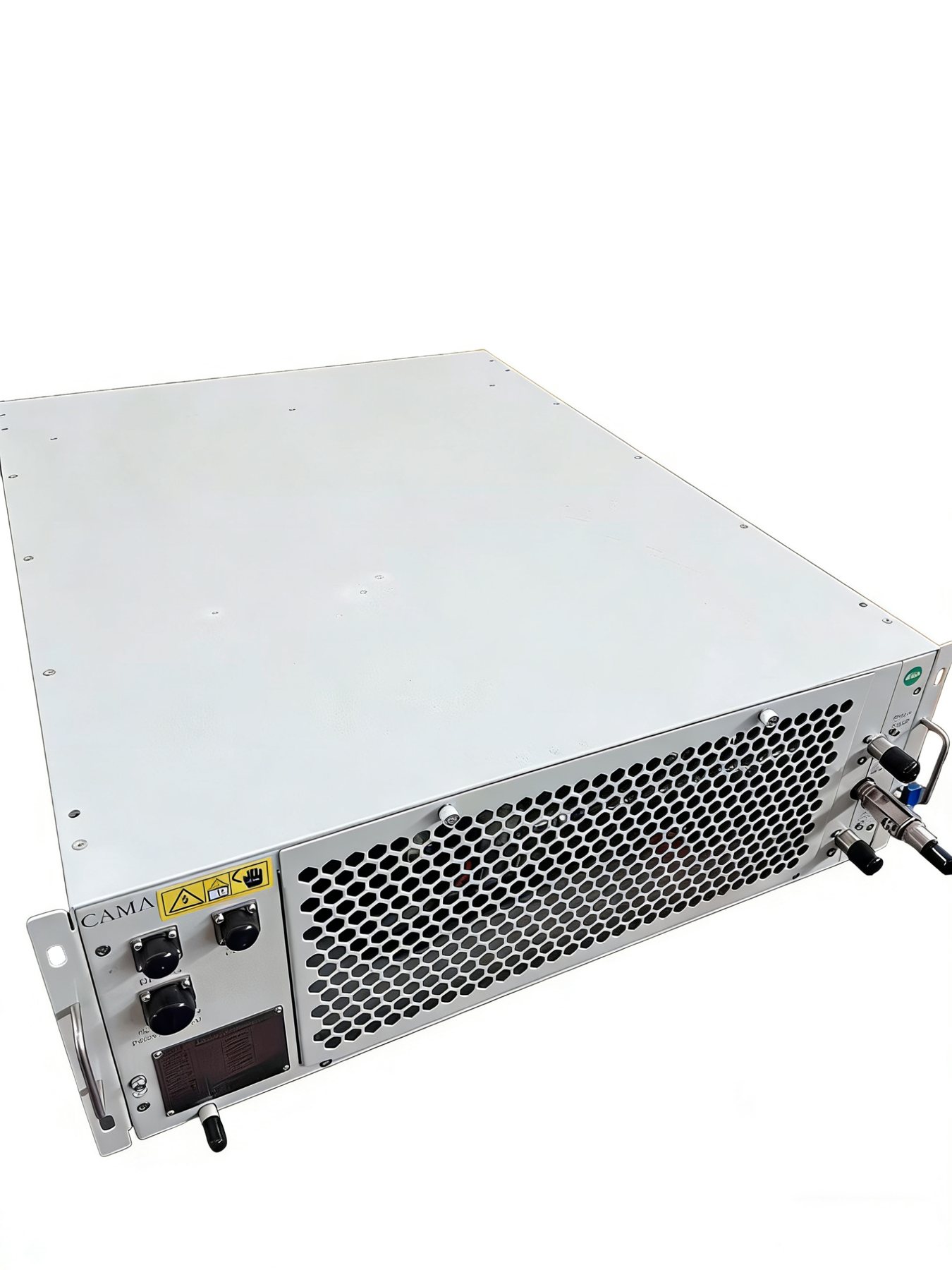

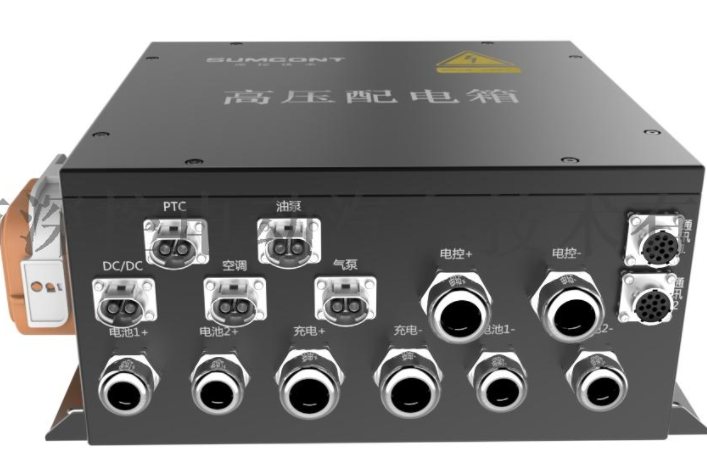

Cold plates, enclosures, cooling units.
Most of what we ship is built to customer drawings. These are the families and sizes we run in series today — a starting point for your own specification.
Product range
Select a product for details.
Materials & typical specifications
What we quote against.

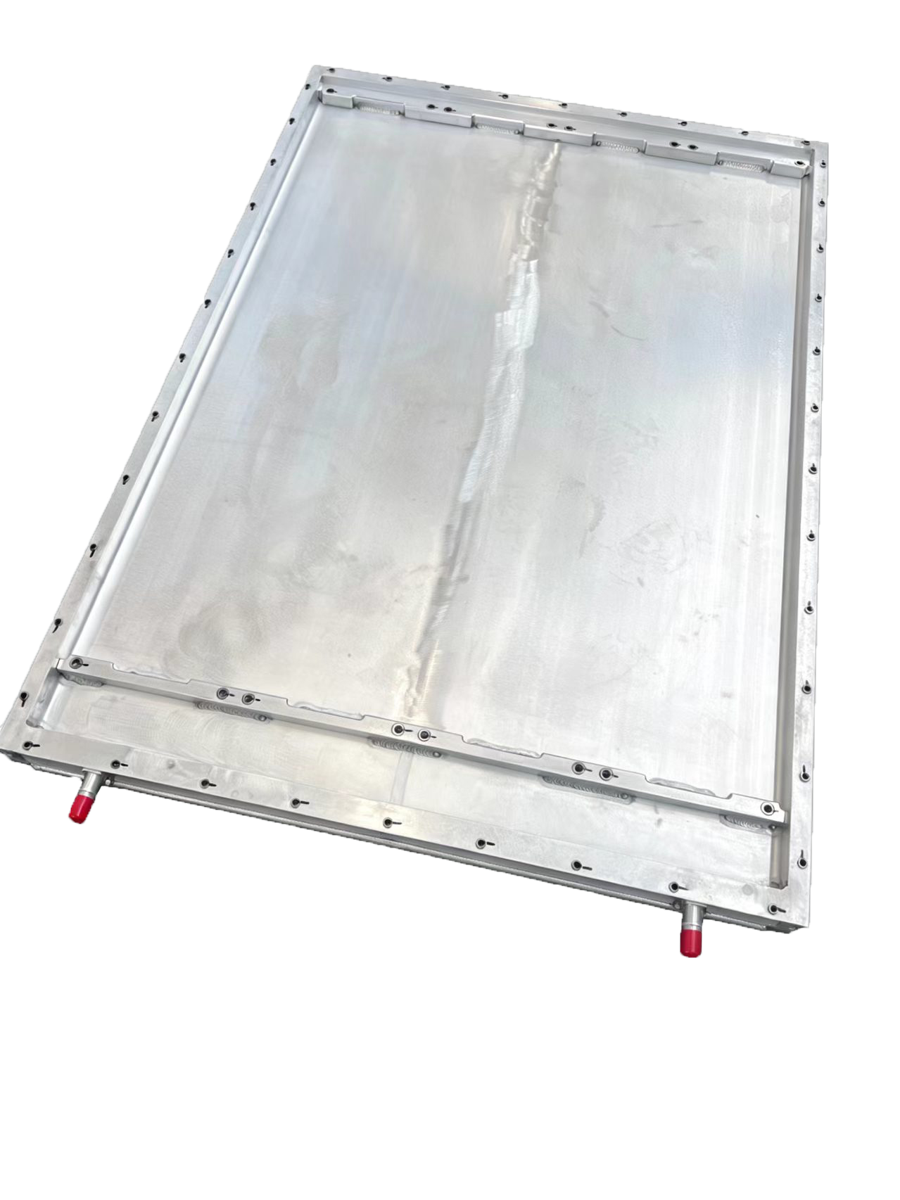

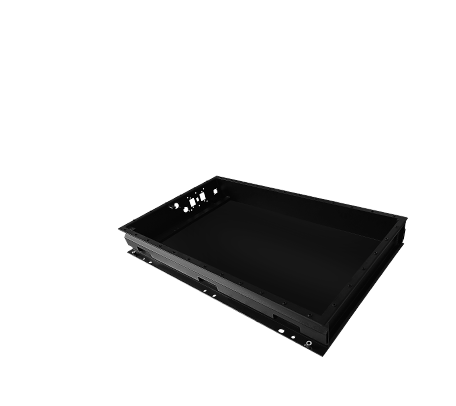

| Item | Cold plates | Enclosures & trays |
|---|---|---|
| Materials | Aluminium sheet and extrusions | Carbon steel, galvanised, stainless, aluminium |
| Joining | Friction-stir welding, laser welding | Robotic MIG, TIG, laser, press-fit hardware |
| Finish | Passivation, powder or e-coat on request | E-coat (≥1,000 h salt spray), powder 40–120 µm |
| Testing | 100% pressure / leak test; flow and pressure-drop test on request | Dimensional inspection, water-ingress test, salt spray |
| Documentation | PPAP on request; material certificates; inspection reports | |
| Volumes | Prototype to series; flexible small-batch scheduling | |
Send us a drawing.
STEP or PDF, with target volumes. A process engineer replies with a DFM review and quotation.
